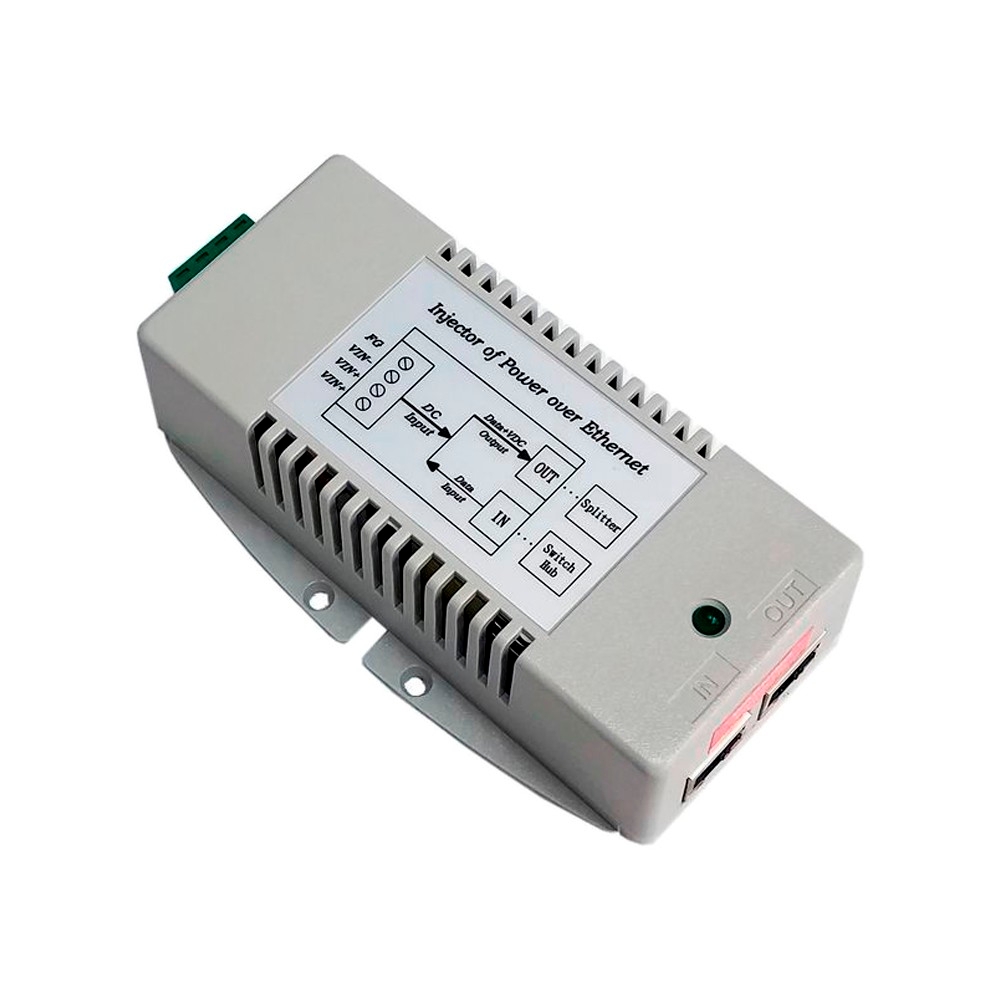

MODEL: TP-DCDC-1224G-4P

The TP-DCDC-1224G-4P provides a cost-effective and high-efficiency DC to DC Converter solution for delivering 24VDC 4-pair Passive Power over Ethernet. It efficiently converts power from a 12VDC or 24VDC source, such as a battery system or vehicle. With its integrated 4-pair PoE injector, it applies both power and data to the CAT5/6 Ethernet cable, ensuring that all 8 wires carry both data and PoE power.

The unit regulates and protects the output voltage, featuring a common (-) and two (+) inputs for connecting primary and backup power sources. Its isolated inputs and outputs allow flexibility with either + or – ground configurations.

Designed for gigabit data, the converter accepts data through a shielded RJ45 jack and provides both gigabit data output and 4-pair PoE power through another shielded RJ45 output jack. It supplies power to Ethernet pins 1, 2, 4, and 5 (V+) and 3, 6, 7, and 8 (V-). With built-in surge, short circuit, and overload protections, the TP-DCDC-1224G-4P ensures reliable operation, delivering up to 24W of power.

Ideal for various industrial applications, telecom solutions, and remote monitoring systems, this converter stands out due to its robust design and reliable performance. It is particularly suitable for environments where consistent and dependable power supply is critical. Additionally, the TP-DCDC-1224G-4P’s compact form factor allows for easy integration into existing systems, making it a versatile and essential component for any network infrastructure.

Its advanced features not only guarantee efficient power conversion but also enhance overall system stability, making it a preferred choice for professionals seeking high-quality and durable power solutions. Whether deployed in urban settings or remote locations, the TP-DCDC-1224G-4P delivers unmatched performance and reliability, ensuring uninterrupted operation and peace of mind.

Features – DC to DC Converter

• DC to DC Converter
• Input Voltage 9-36VDC
• 24V Gigabit Passive 4 Pair PoE Output
• Dual Inputs for Connecting 2 Power Sources
• Integrated 10/100/1000MB PoE Inserter
• High Power up to 24W
• Short Circuit, Over Current and Reverse/Over Voltage Protect
• High Temperature Operation to 70C
• Built-in Low Battery Disconnect and Surge Protection
• I.T.E. Power Supply, UL Listed

Applications

• 12V / 24V Battery Systems, Vehicle Applications
• UBNT Airfiber-X
• Wireless Access Points and Client Devices
